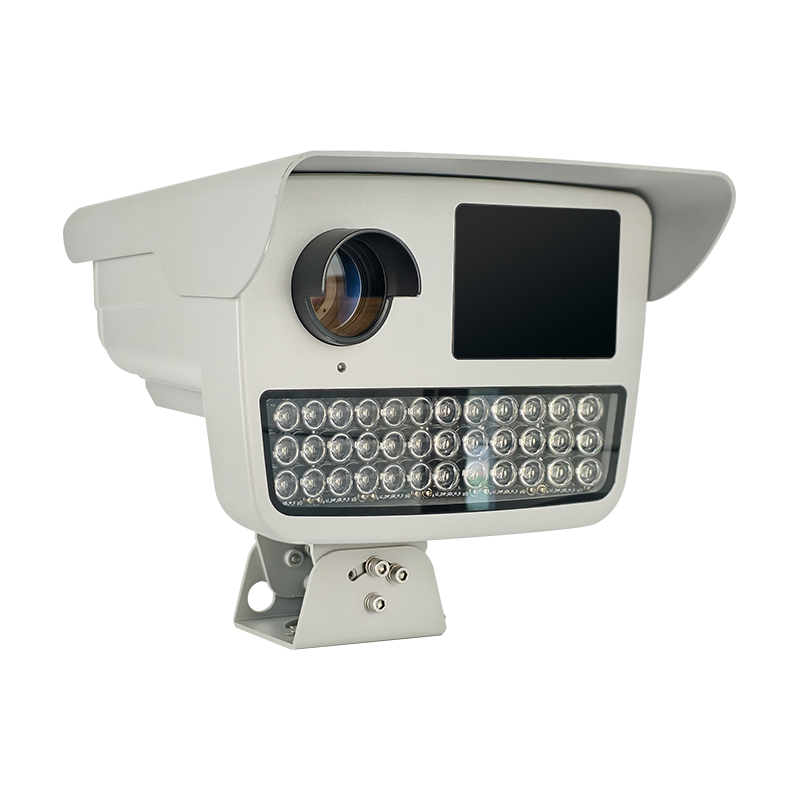

Fixed Speeding Enforcement Camera
Model: SWHV-VCSE-900(P)
SWHV-VCSE-900(P) Fixed Speeding Enforcement Camera mainly comprises an 8-megapixel HD lens, 3D multi-target radar, high-performance AI processor chip, auxiliary infrared light, and other modules. It can realize the following functions: ● Real-time vehicle speed measurement ● HD image acquisition ● Vehicle information recognition ● GPS positioning ● Data upload ● ...... It is suitable for speeding capture, traffic data collection and analysis, and other fields of traffic enforcement. It has a high resolution, high accuracy of speed measurement, stability and reliability, and easy installation.
Video Introduction
视频加载中...

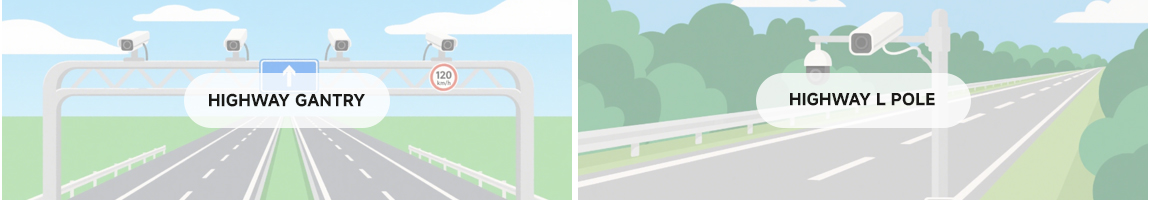

Application Scenarios
Function
Vehicle Detection
The device has real-time video stream detection to track and capture vehicles, and the maximum detection range can cover four lanes.

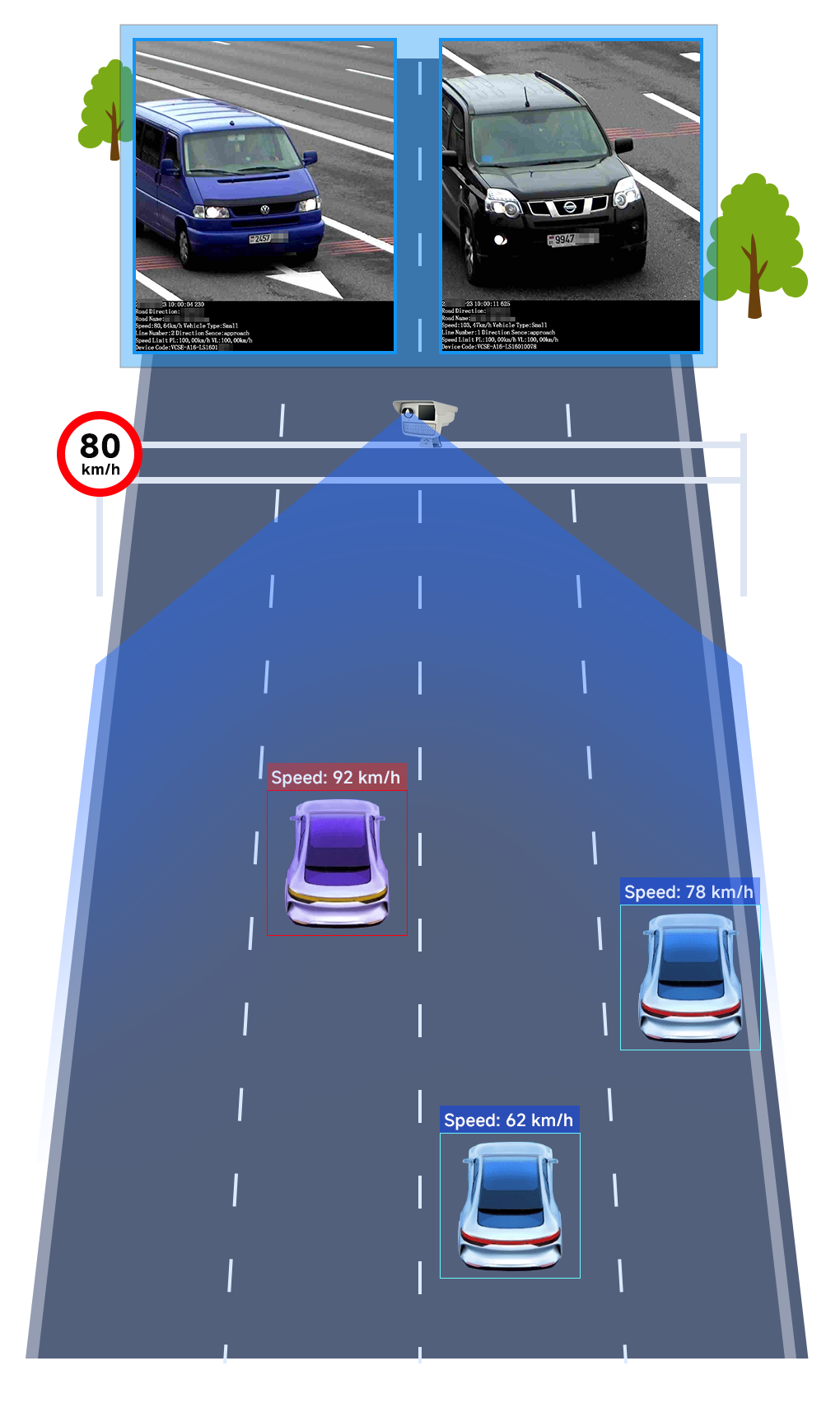

Multiple Target Speed Measurement
The device uses 3D radar to simultaneously detect the speed of multiple vehicles in multiple lanes, it can support up to 64 tracking targets at the same time. It can achieve accurate capture, and reduce missed shot.
Speed Limit by Vehicle Classification
The device can automatically detect the vehicle type and set different speed limit values for large or small cars to reduce the workload of manual screening.
License Plate Recognition
The device uses the real-time video stream to recognize the license plate, which can automatically adapt to the front scene or rear scene detection and recognition.
Character Overlay
The device allows overlaying time, license plate number, speed, custom characters, and other information on the image.
Image Return
The captured vehicle information can be automatically transmitted back to the center.
Features
High Resolution
The device uses a 4096×2208 high-resolution Ultra High Definition(UHD) image sensor, which can clearly recognize vehicle features.
High Accuracy of Speed Measurement
The error is less than 1Kmph when 100Kmph is below and less than 1% when 100Kmph is above, to reduce the disputes caused by inaccurate speed measurement.
Stable and Reliable
The device adopts an All-in-One, wide-temperature design, which is stable and reliable and can adapt to various outdoor environments.
Easy Installation
The whole system only needs to install one device, and the construction installation does not damage the road surface.
Specification
| Camera | |
| Sensor Type | 8 MP 1/1.2" CMOS |
| Effective Pixels | 3864×2180 |
| Shutter | Auto/Manual,14.8µs～40ms |
| Min. Illumination | Color 0.0037Lux@（F1.4，AGC ON） |
| Gain Control | Auto/Manual |
| White Balance | Auto/Manual |
| WDR | Support |
| Noise Reduction | Support |
| Lens Type | CS |
| Video | |
| Video Bit Rate | 2kbps ～ 16Mbps |
| Video Frame Rate | 1fps ～ 25fps |
| Function | |
| Allowable Vehicle Speed | 0～260Km/h |
| Speed Violation Detection Accuracy | ≥99% |
| Capture Accuracy | ≥97%（Single vehicle through, the whole time without shelter） |
| Vehicle Type Classification Accuracy | ≥95%（Distinguish between large and small cars） |
| Velocity Measurement Error | ±1km/h |
| Output Information | Speeding vehicles: 2 large pictures of vehicles, 2 close-up pictures of vehicles, 1 small color picture of license plates, 5-second video, license plate result text, additional information text, etc. Ordinary vehicles: 2 large pictures of vehicles, 2 close-up pictures of vehicles, 1 small color picture of license plates, license plate result text, additional information text, etc. |

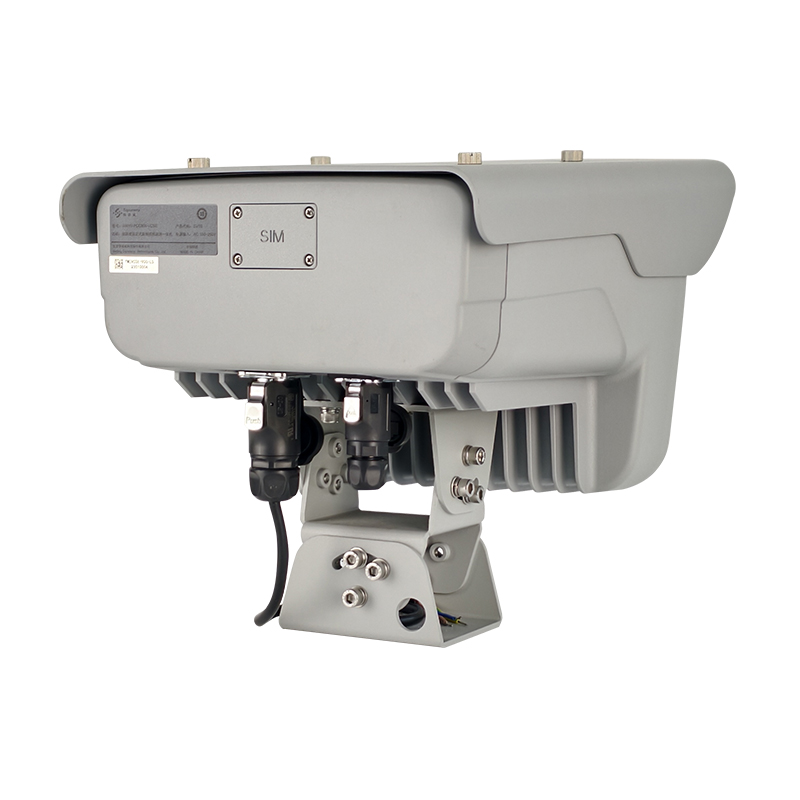

| Interface | |
| Network Port | 1 100/1000M self-adaptive RJ45 |
| 4G Network Interface | One Nano-SIM card, supports full Netcom, and supports access to private networks through APN |
| Power Interface | 1 aviation connector |
| General | |
| Network Protocol | Supports a variety of network protocols, including: TCP/IP, UDP, HTTP, HTTPS, NTP, RTSP, ONVIF and other protocols |
| Access Standard | RTSP、ONVIF |
| Power Supply | AC 85～305V，47～63Hz |
| Environment | Temperature -40℃～+60℃ ，Humidity 20% ~ 90% (no condensation) |
| Protection Grade | IP67 |
