Under-Vehicle Scanning System
Model: SWHV-PCC300-VBSS-TV09

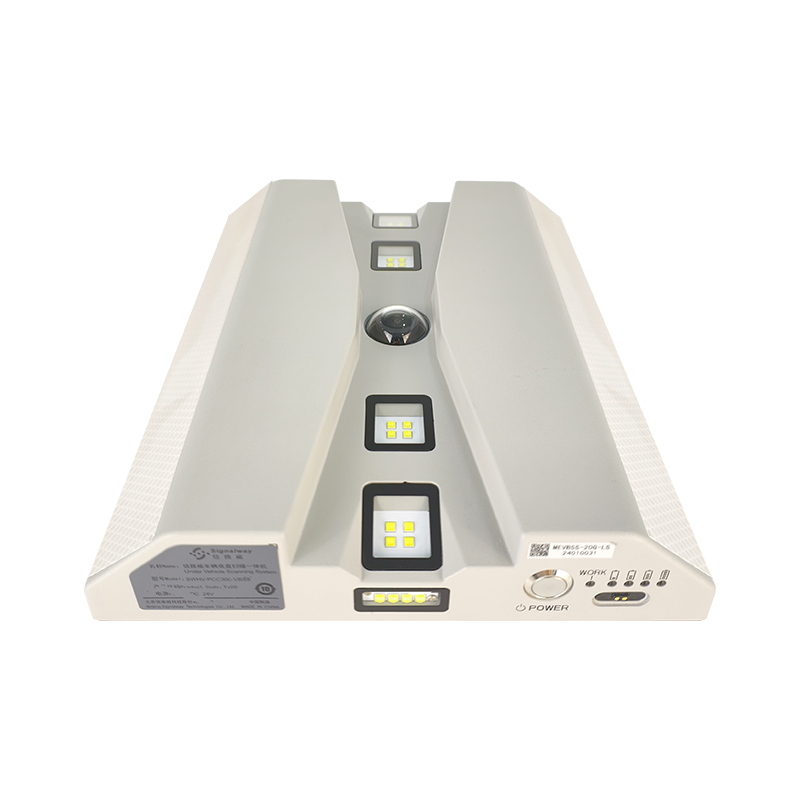

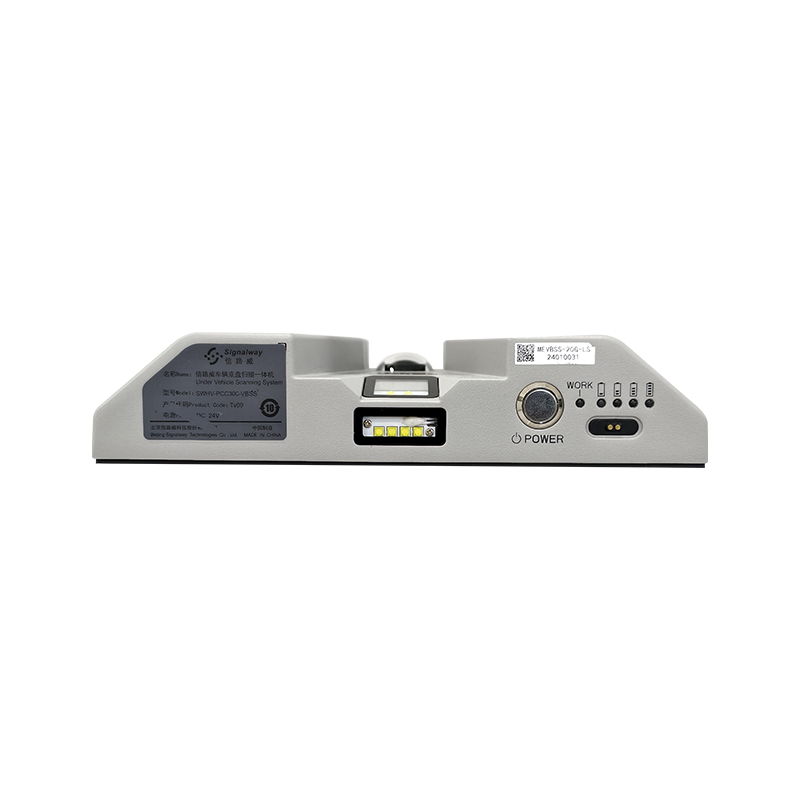

Signalway UVSS is a portable under-vehicle security inspection system. This system integrates an all-in-one camera capable of scanning the vehicle chassis and recognizing license plates, providing a comprehensive solution for vehicle access management. It is equipped with an Android application, allowing operators to simply use an Android tablet to monitor vehicle scanning in real time and export results, significantly streamlining the security inspection process and improving work efficiency. The system can perform rapid under-vehicle scans for vehicles moving at speeds ranging from 1 km/h to 50 km/h, delivering high-definition imaging results in as fast as 2 seconds. The system can be deployed without large-scale construction and utilizes proprietary image processing technology developed by Signalway to achieve exceptional image distortion correction and seamless multi-frame stitching.
Video Introduction
视频加载中...
Application Scenarios
Function

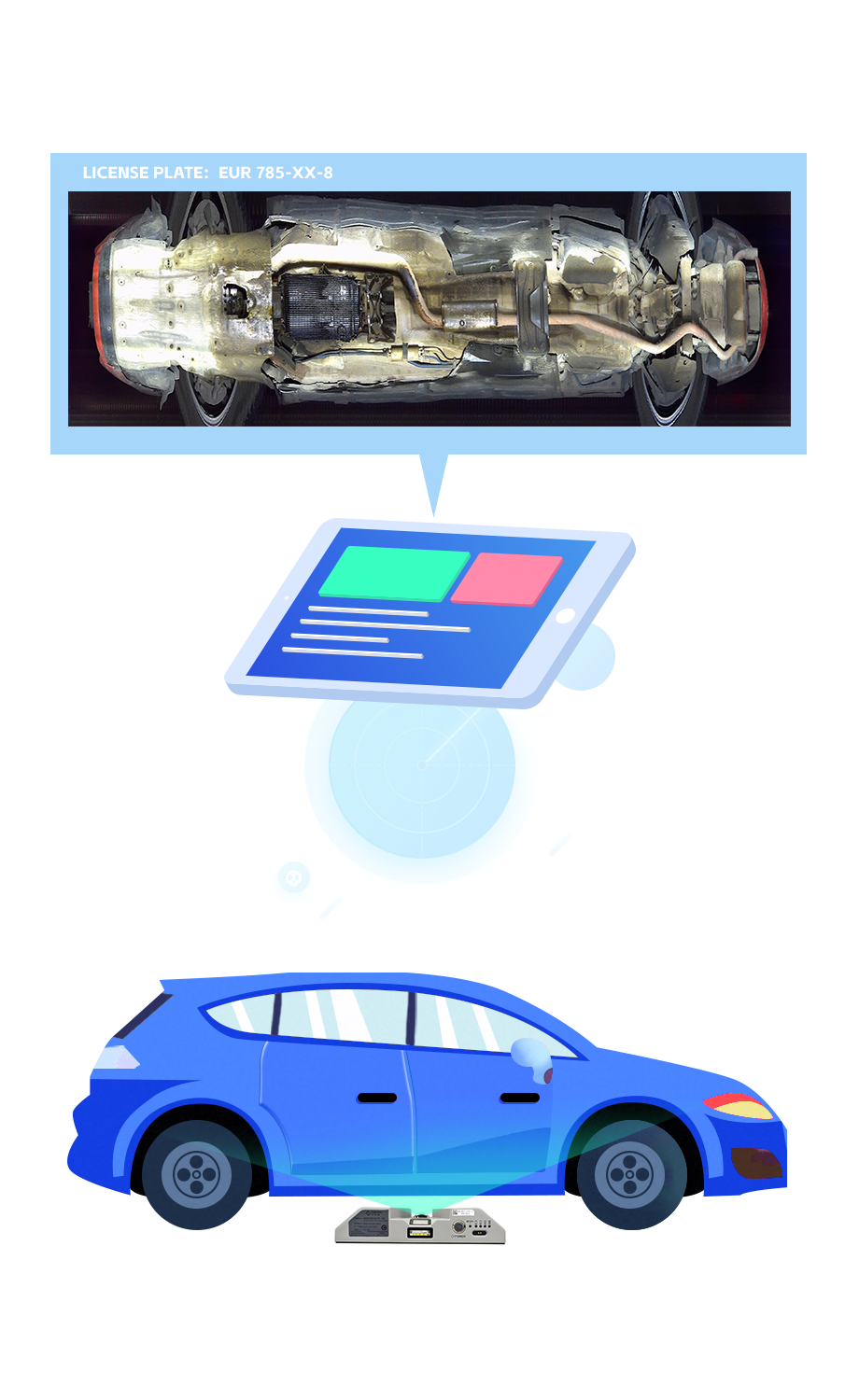

Vehicle Detection
It can detect vehicles in real-time video streams and automatically scan the bottom of vehicles with a speed of less than 50 km/h.
Real-time Viewing and Detection
An Android app is available. Functions in the application include real-time viewing of the scanning process, safety checks, searching vehicle information according to license plates, receiving and downloading results, and so on.
License Plate Recording
The license plate can be entered manually for later management. License plate recognition can also be developed (customization required)
Automatically Fill Light
AI automatically controls the filling light on and off.
Video Stream Output
It can output high-definition H.264 or H.265 videos in real-time.
Suspicious Area Identification
Automatic identification of suspicious areas under the vehicle.
Features
Fast scanning, HD images
Outputs HD vehicle chassis scans in 2 seconds and supports zooming in to see details.
No installation, immediate use
Signalway's UVSS is simple to deploy and does not require installation. Place the device in the preset position and turn it on to use.
Small, lightweight, flexible and safe
Signalway's UVSS weighs only 3.7kg and is only up to 50mm, which is the same height as the speed bump and does not affect the scraping problem caused by the vehicle driving over the equipment.
Wireless charging, available anywhere
Signalway's UVSS comes with its own power module and WIFI network module, which can be charged wirelessly, and the field conditions do not limit the use of the device.
Waterproof, dustproof and anti-electromagnetic interference
Signalway's UVSS is designed with integrated, waterproof, dustproof and anti-electromagnetic interference.
Specification
| Sensor Type | 3MP 1/2.8”CMOS |
| Effective Pixels | Based on the actual vehicle mosaic image |
| Shutter | Auto/Manual，7us～8ms |
| Min. Illumination | 0.01Lux（F2.0，AGC ON） |
| Lens Type | M12 |
| Lens Stop | F2.0 |
| Video Compression | H.264 High Profile/H.265 Main Profile |
| Video Bit Rate | 2Kbps～16Mbps |
| Video Stream | Main Stream: H.264/H.265, default resolution is 1080P(1920×1080), optional resolution is 720P(1280×720) Substream: H.264, default resolution is 1080P(1920×1080), optional resolution is 720P(1280×720) |
| Transmission Distance | 15m |
| Maximum Load Bearing | 30T |
| Allowable Vehicle Speed | 1km/h～50Km/h |
| Output Contents | 1 panoramic picture of vehicle bottom(Max image size 16384×2048), license number, additional information text, etc |
| Built-in Battery | 10.8V 16.75Ah |
| Full Battery Life | 19Hours |
| Protection Grade | IP67 |
