Portable Speeding Enforcement Camera
Model: PCP800V8(P)

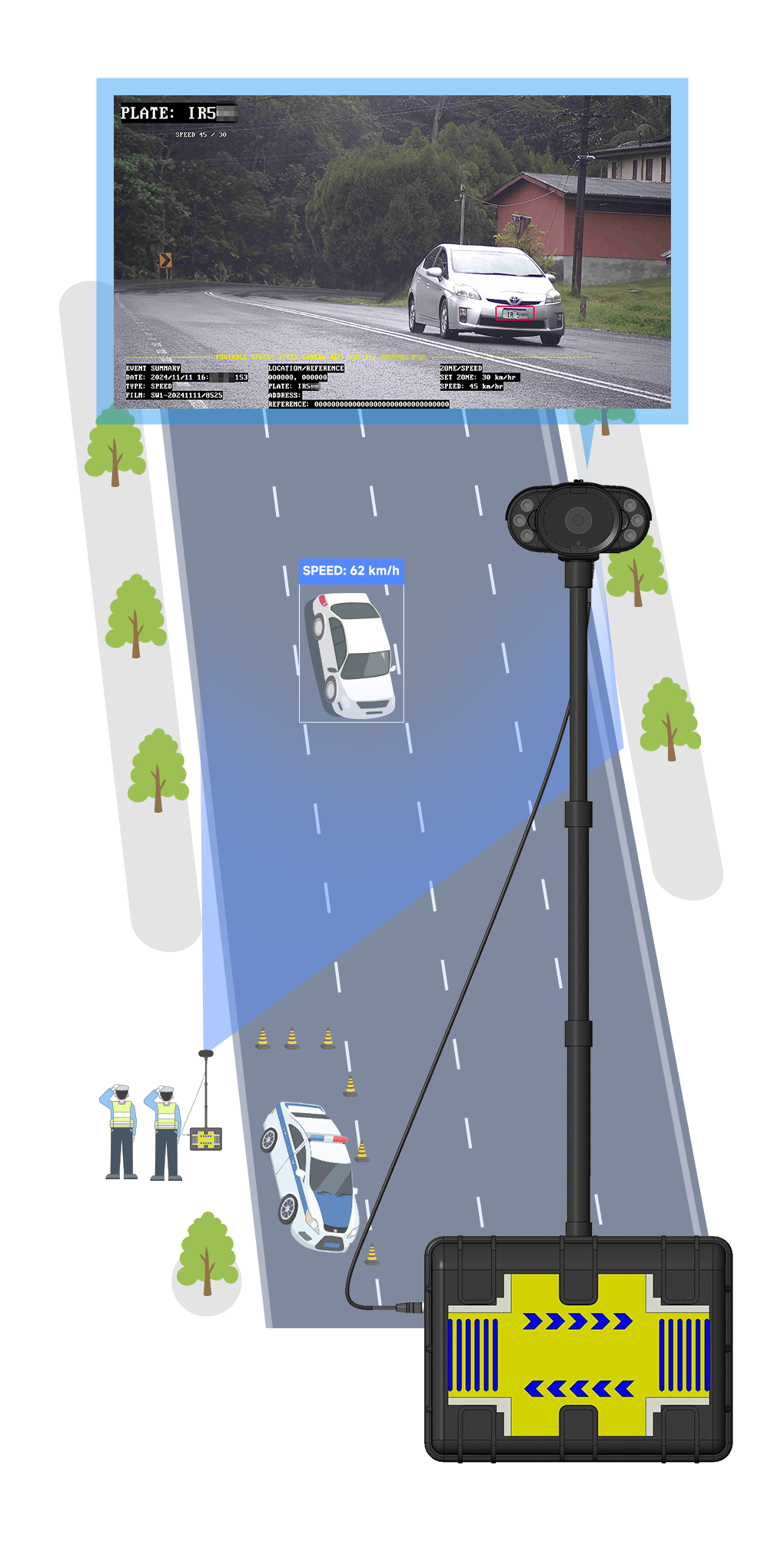

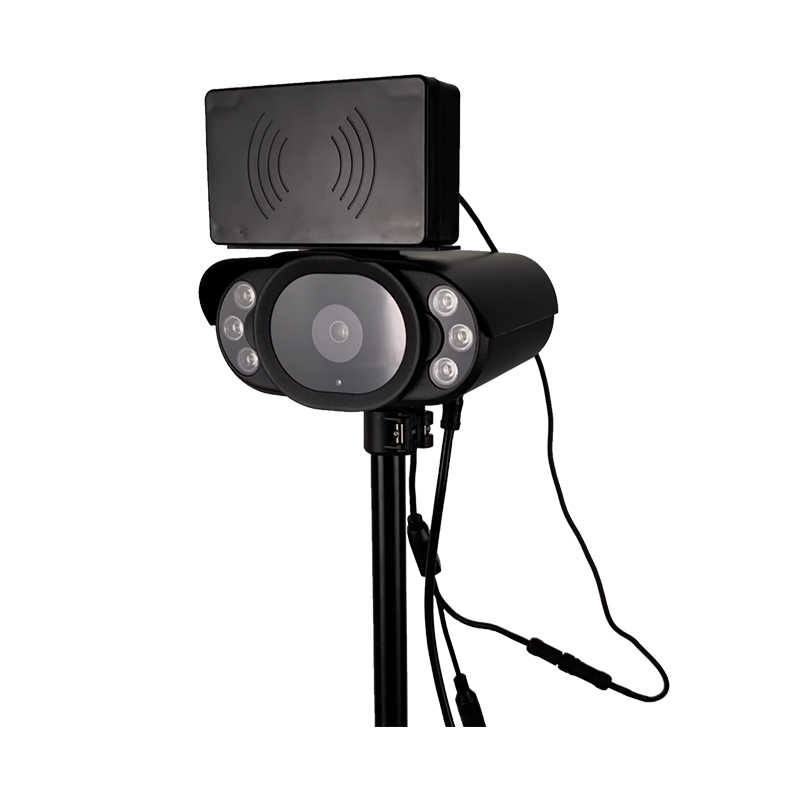

PCP800V8 (P) Portable Speed Measurement Enforcement System is mainly composed of an 8-megapixel HD lens, narrow-wave radar, high-performance AI intelligent processor chip, LED light, and other modules. It supports vehicle detection and speed measurement in front or rear scenes and can cover three lane widths. It can realize the following functions: ● Real-time speed measurement ● HD image acquisition ● Vehicle information recognition ● Detection of illegal behavior such as reverse traveling and pressing solid line ● GPS/BEIDOU dual-mode positioning ● Data upload ● ...... It mainly uses in the areas such as speeding capture, traffic management, blacklist alarm, etc. It has the characteristics of easy installation and convenience to use, etc.
Video Introduction
视频加载中...

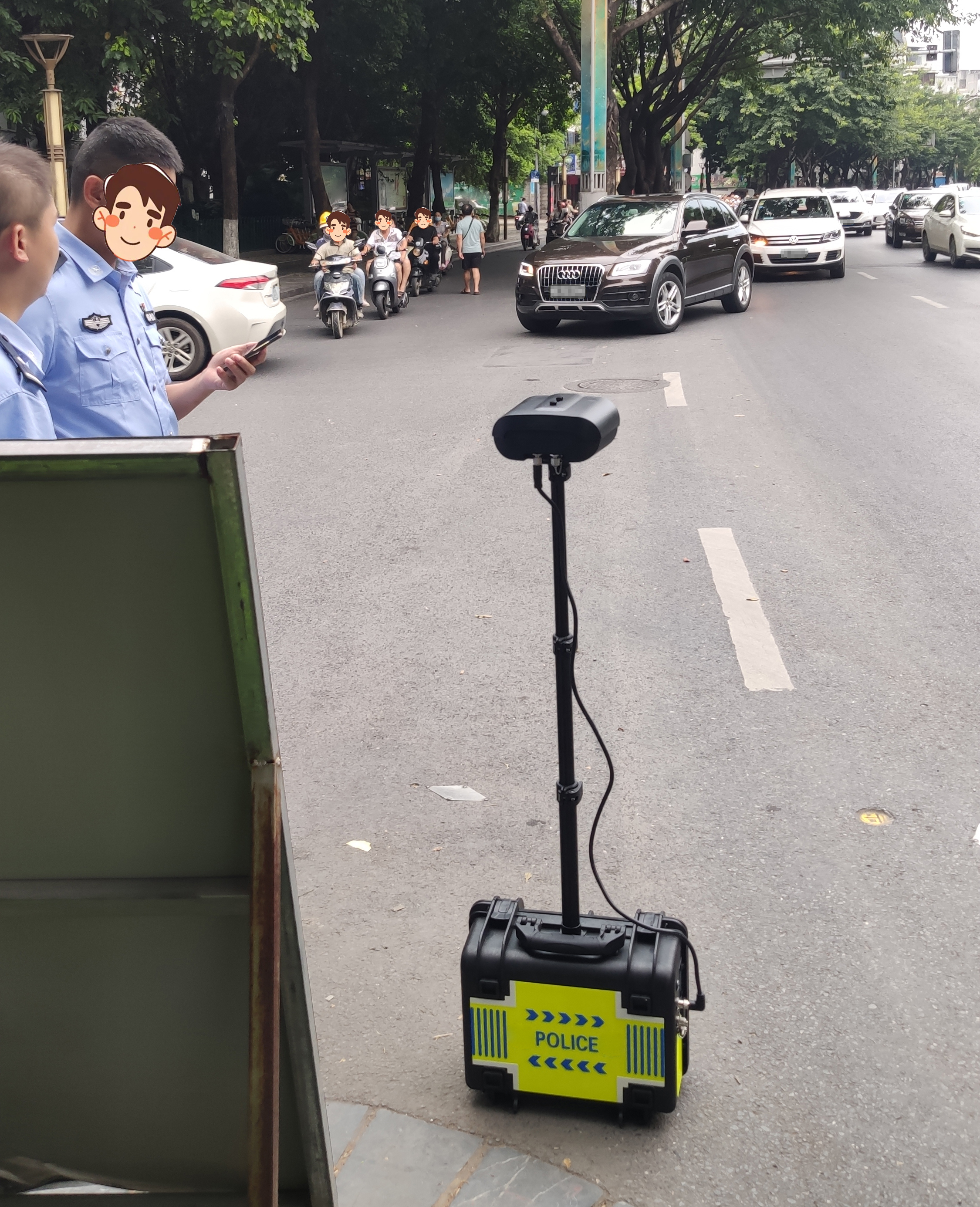

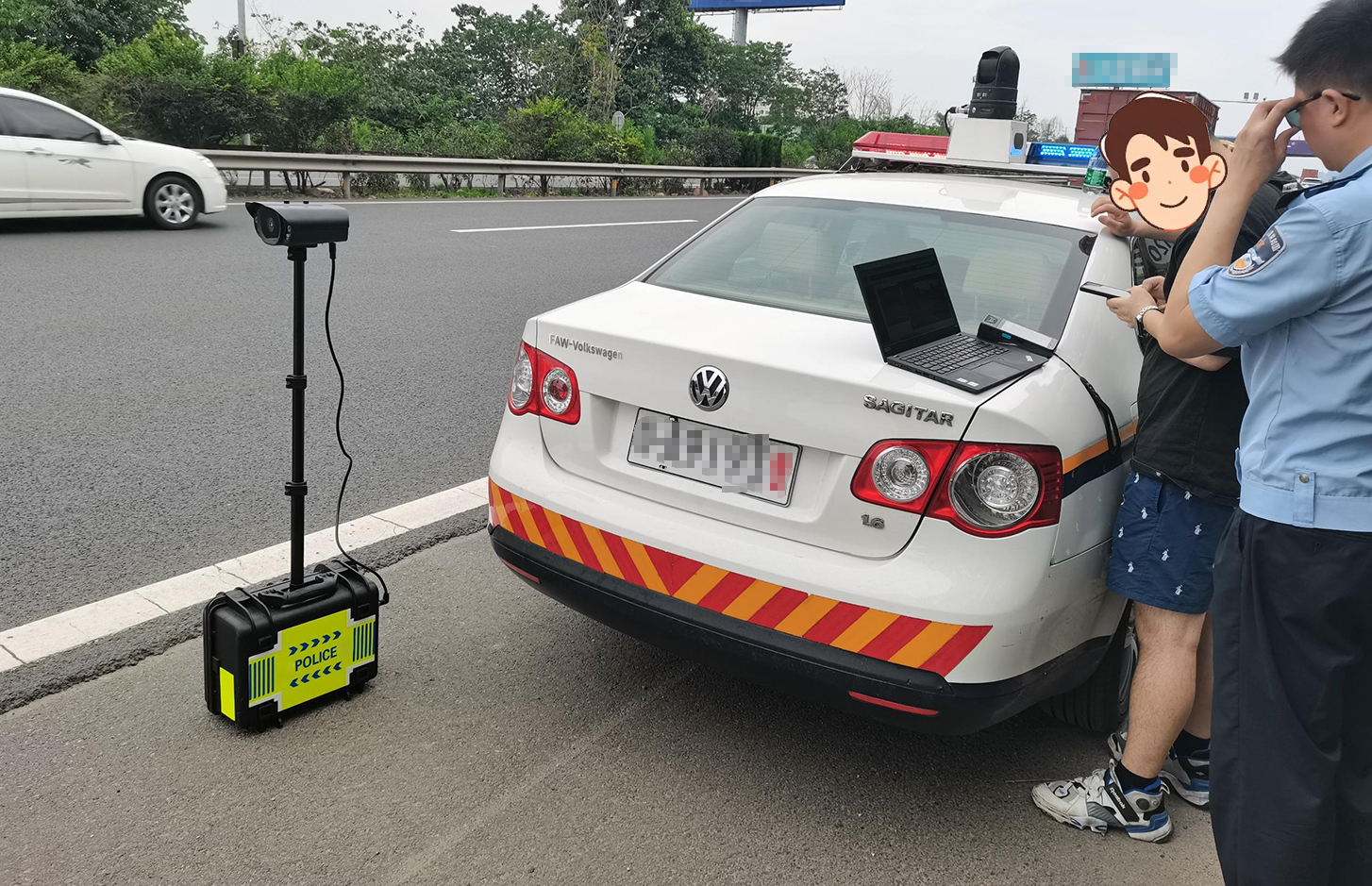

Application Scenarios
Function
Vehicle Detection
The device can detect and track vehicles through real-time video streaming, and the maximum detection range can cover one lane width.
Radar Speed Measurement
The device uses high-precision narrow-wave radar to detect the speed of passing vehicles in real-time.
License Plate Recognition
The device has a built-in high-performance AI processor chip and a license plate recognition algorithm, which can recognize the license plate number in real-time.
Blacklist Alarm
The device can compare the license plate number in real-time according to the preset blacklist and immediately alarm.
Video Viewing
The device can view real-time video and supports the Onvif protocol.
Automatic Image Upload
The device can automatically upload the captured data to the center.
Continued Transmission after Network Disconnection
The device has a built-in memory card, which can realize continuous transmission after network disconnection.
Real-time Positioning
It support GPS/Beidou dual-mode positioning, which can accurately locate the device location.
Features

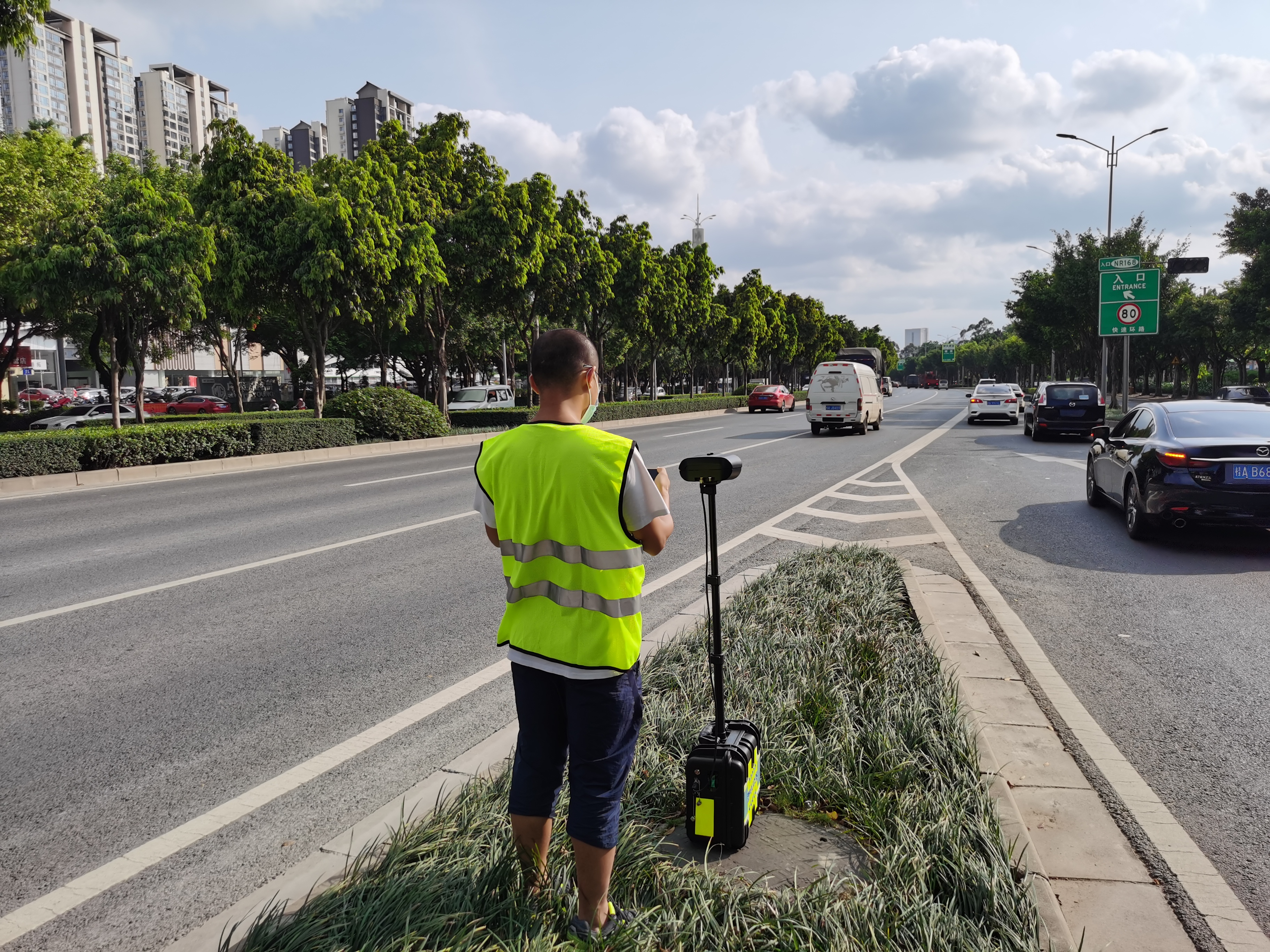

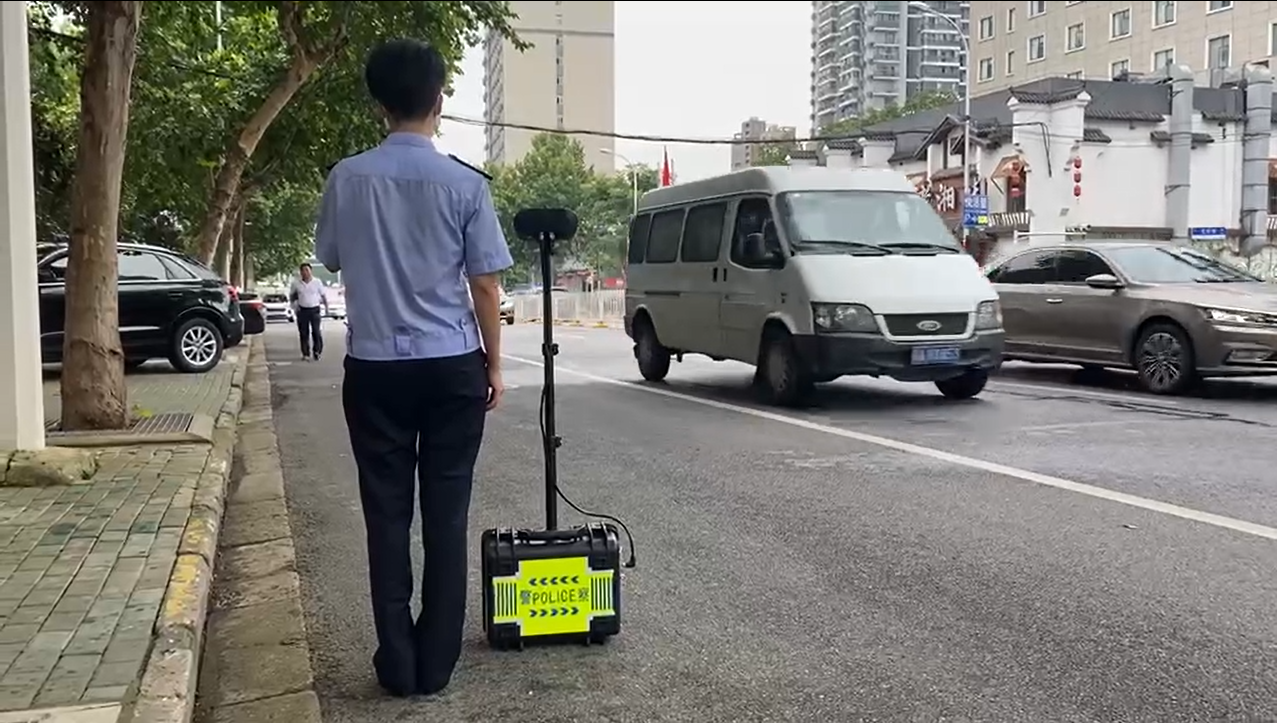

Easy Installation

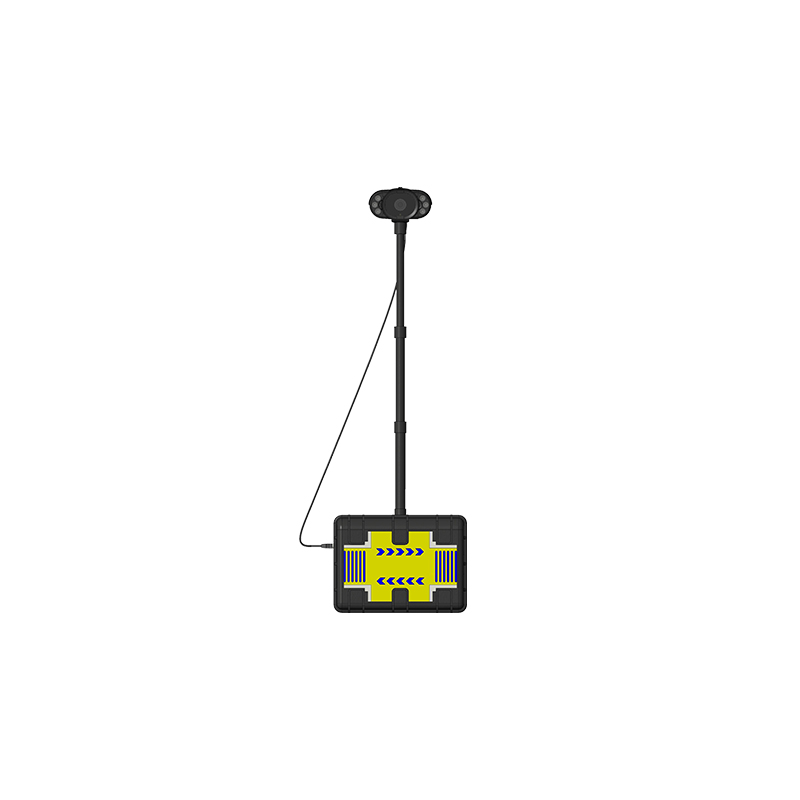

Mobile device, portable storage design, and the installation step is simple.
Adaptive Scene
It can automatic analysis through intelligent algorithm, automatic adaptive detection and recognition of front scene or rear scene.
Convenient to use

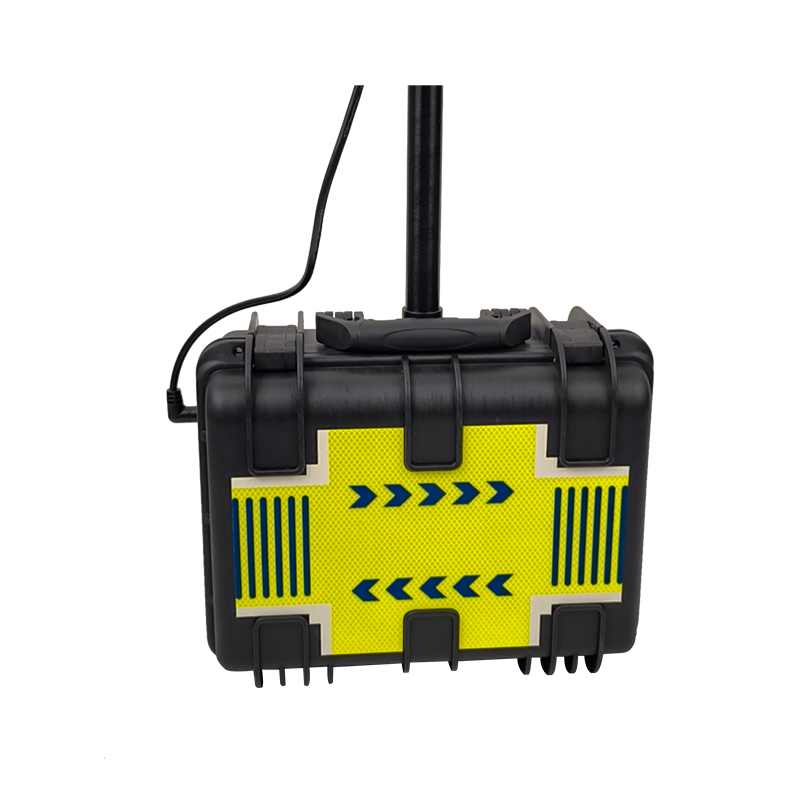

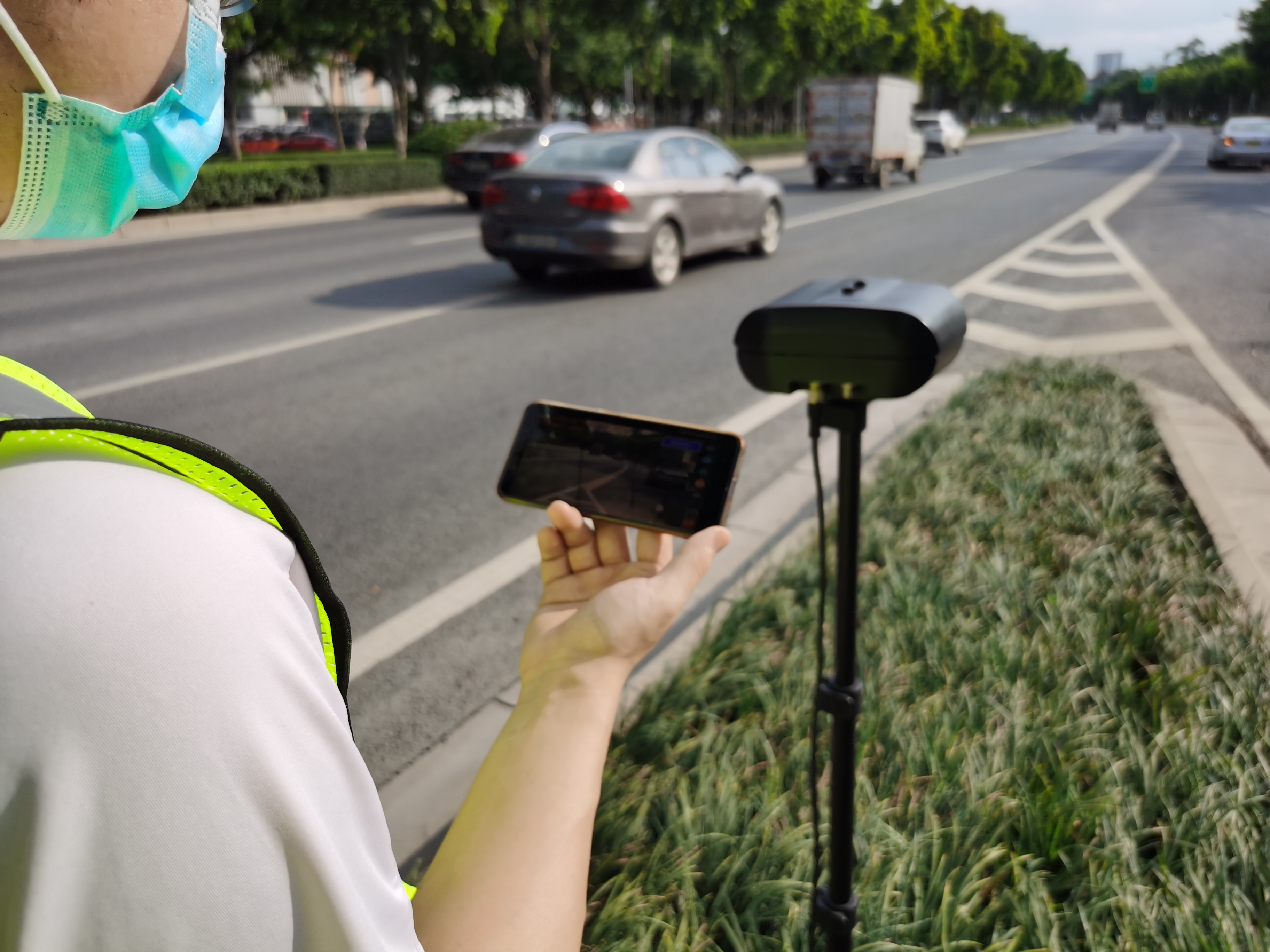

It has its own power supply module, 4G/WIFI network module, supports the Android mobile system to download APP, and connects devices through WIFI, which is not limited by site conditions.
Specification
| Sensor Type | 8-megapixe 1/1.8" CMOS |
| Effective Pixels | 3840×2160 |
| Shutter | Auto/Manual, 14µs～40ms |
| Min. Illumination | Color 0.012Lux@（F2.0，AGC ON） |
| Lens Type | M12 |
| White Balance | Auto/Manual |
| HLC | Support |
| WDR | Digital WDR |
| Noise Reduction | 2D NR; 3D NR |
| Video Compression | H.264 High Profile |
| Video Bit Rate | 128Kbps～16Mbps |
| Video Frame Rate | 1fps ～ 25fps |
| Resolution | 1920×1080 |
| Capture Accuracy | ≥95% |
| Number Plate Recognition Accuracy | ≥95%（Standard license plate） |
| Error Capture | ≤3% |
| Speed Range | 5-260KM/H |
| Error Range | ≤2KM/H（≤100KM/H ），≤2%（≥100KM/H） |
| Capacity | ≥20AH（Can work for more than 10 hours） |
