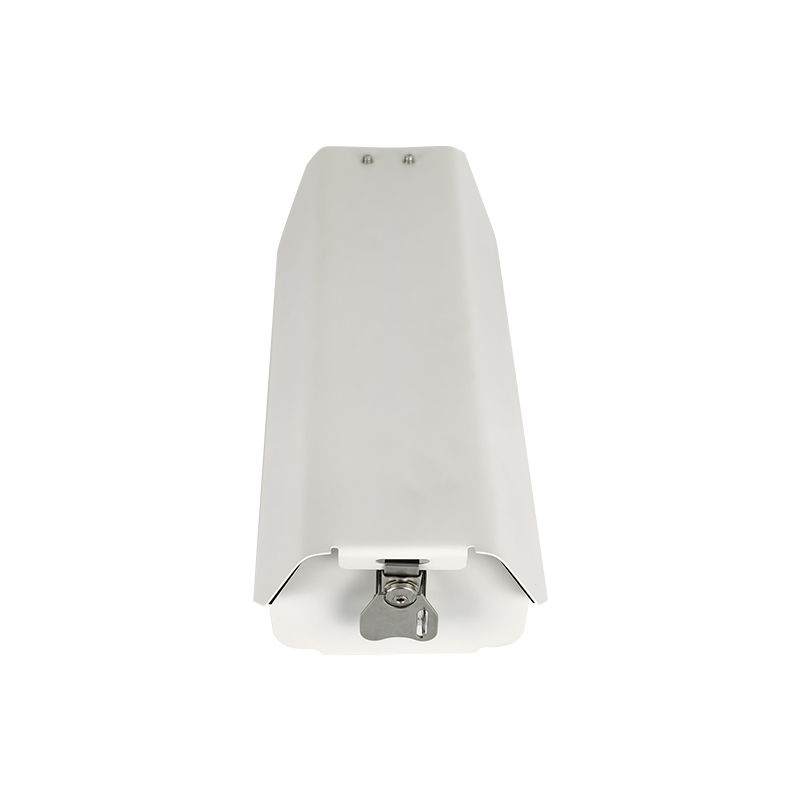

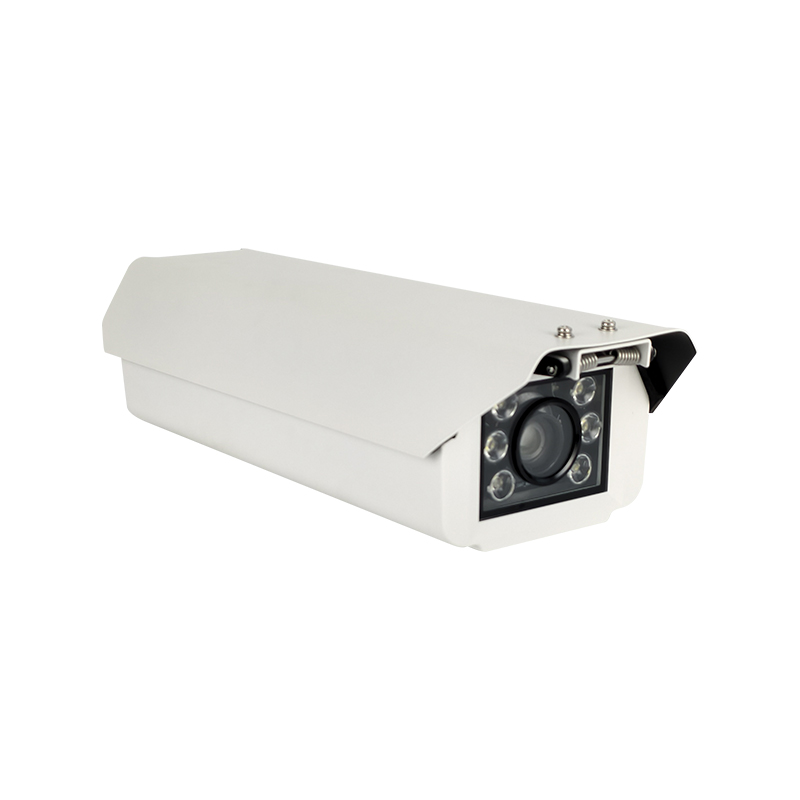

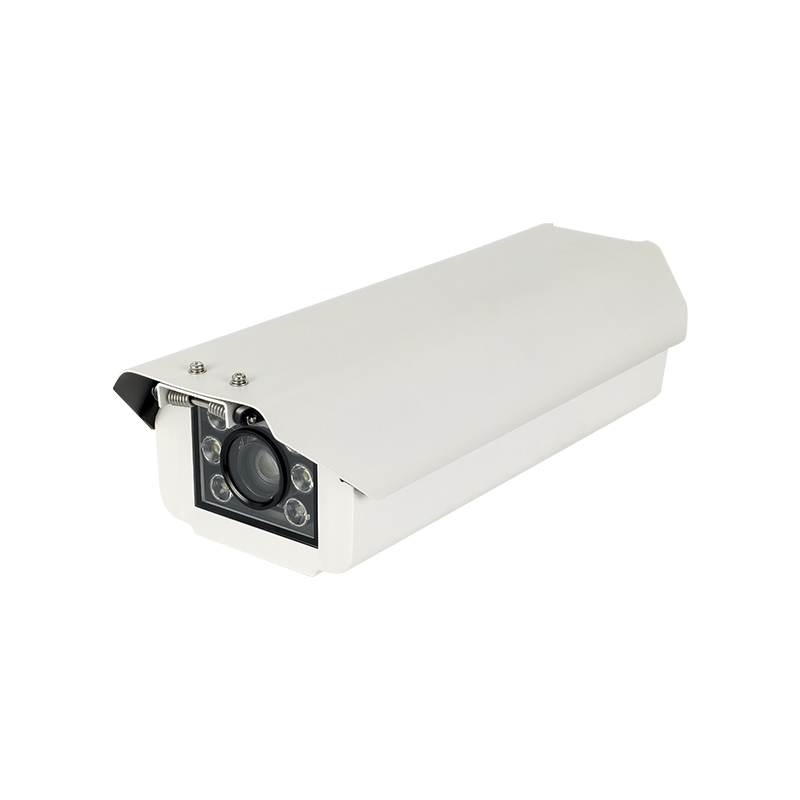

Traffic Flow Detector

Model: APC800-OSP

The Traffic Flow Detection Camera, mainly comprises a lens, imaging module, and high-performance AI processor chip. It integrates image acquisition, vehicle detection, traffic flow detection, and traffic data statistics. It can detect the traffic flow, instantaneous speed, average speed, time occupancy ratio, road congestion, and other functions. It is easy to install, stable and reliable, waterproof, dust-proof, and anti-interference. It mainly uses for road traffic flow and abnormal condition detection.

Vehicle capture rate daytime≥95%，night≥90%Allowable vehicle speed 0～120Km/h

Video Introduction

视频加载中...

Application Scenarios

Function

◉

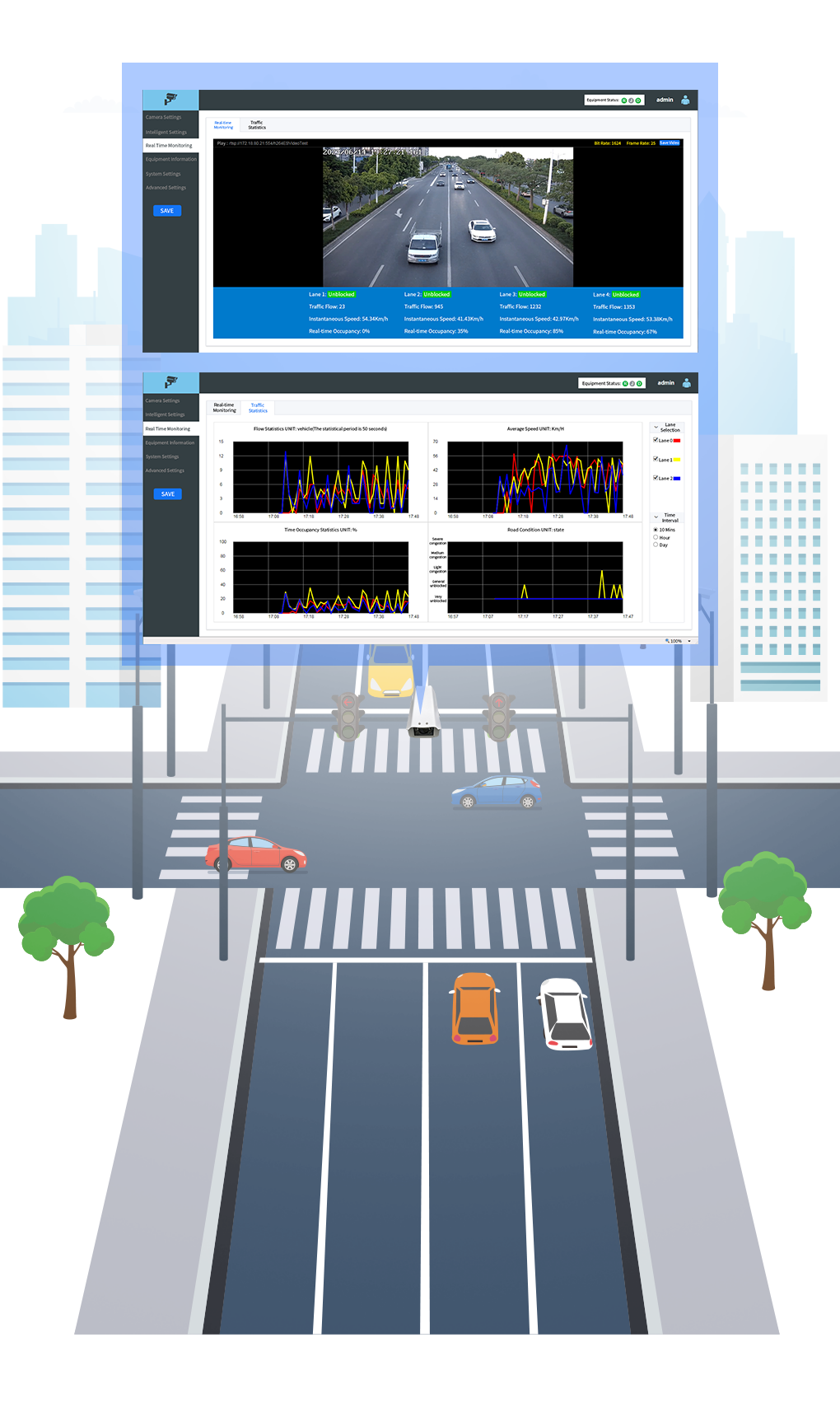

Traffic Detection

The device can automatically divide lanes and detect traffic flow in different segments. The output data is as follows: 1.Traffic Statistics 2.Vehicle Speed 3.Congestion State 4.Queue Length 5.Time Headway 6.Distance Headway 7.Space Occupancy Rate 8.Time Occupancy Rate

◉

User-defined Congestion Judgment

Users can set the judgment basis for road congestion.

◉

Character Overlay

It supports overlay time, location, custom characters and other information on the video. The overlay effect can be configured.

◉

External Devices

Traffic signals can be connected through network.

◉

Video Stream Output

HD H.264, H.265 real-time output.

◉

Multiple Access

Devices with different IP addresses can be connected or accessed at the same time.

Features

◉

Easy Installation

The visual installation facilitates lane calibration; the entire system only requires the installation of detector and universal joint, and the construction process does not damage the road surface.

◉

Waterproof, Dust-proof and Anti-interference

The appearance of equipment adopts an integrated design to prevent rain, dust, lightning, and electromagnetic interference.

◉

Stable and Reliable

The system is designed with embedded low power consumption and can run stably for a long time under various outdoor environmental conditions.

Specification

Camera
Sensor Type	5MP CMOS
Effective Pixels	2592×1952
Video
Video Compression	H.265/H.264 High Profile
Video Bit Rate	512Kbps～8Mbps
Video Stream	Main Stream (default H.264）：1080P（default）@25fps、720P@25fps Sub Stream (default H.264）：1080P@25fps、720P@25fps（default）
Function
Vehicle Capture Rate	daytime≥95%，night≥90%
Statistical Error of Vehicle Capture Rate	daytime≤5%，night≤10%
Output Data	1) traffic statistics 2) vehicle speed 3) congestion state 4) queue length 5) the headway 6) front spacing 7) space utilization rate 8) time occupancy rate
Allowable vehicle speed	0～120Km/h
General
Network Port	1 100/1000Mself-adaptive RJ45
Network Protocol	Supports multiple network protocols, including TCP/IP、UDP、HTTP、NTP、RTSP、ONVIF, etc.
Power Supply	AC 100～240V，50～60Hz
Power Consumption	≤ 12W
Environment	Temperature, -20℃～+60℃ ， Humidity, 20% ～ 90%(no condensation)
